I Joist is a New Wooden Engineering Structural Component. have I 230 I 360 I 560 joists It refers to the solid wood or LVL used as the upper and lower flange, and the plywood structural plate bonding, specifications and performance of stable...

Overview

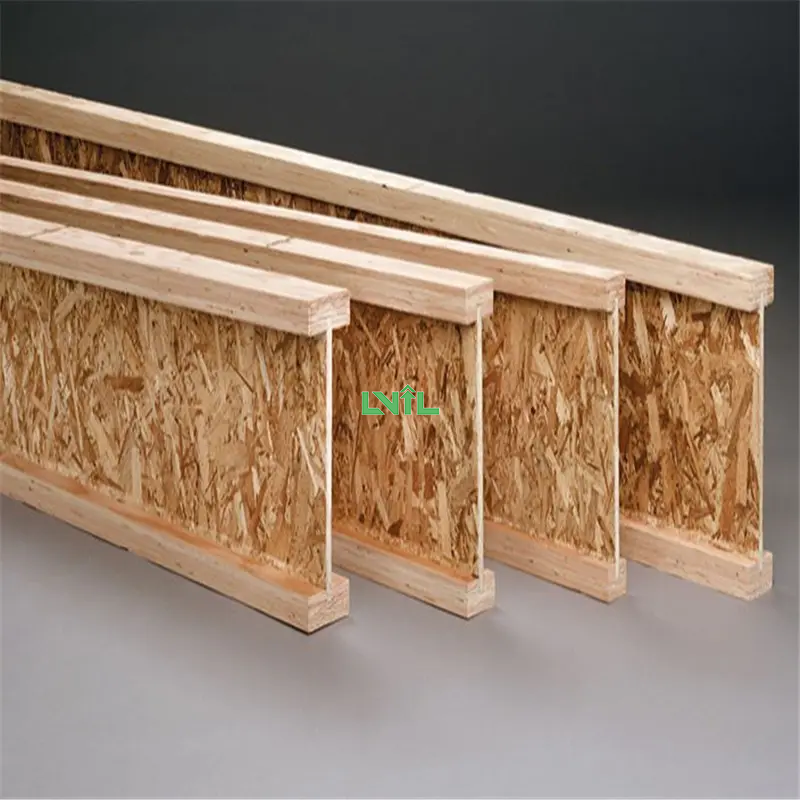

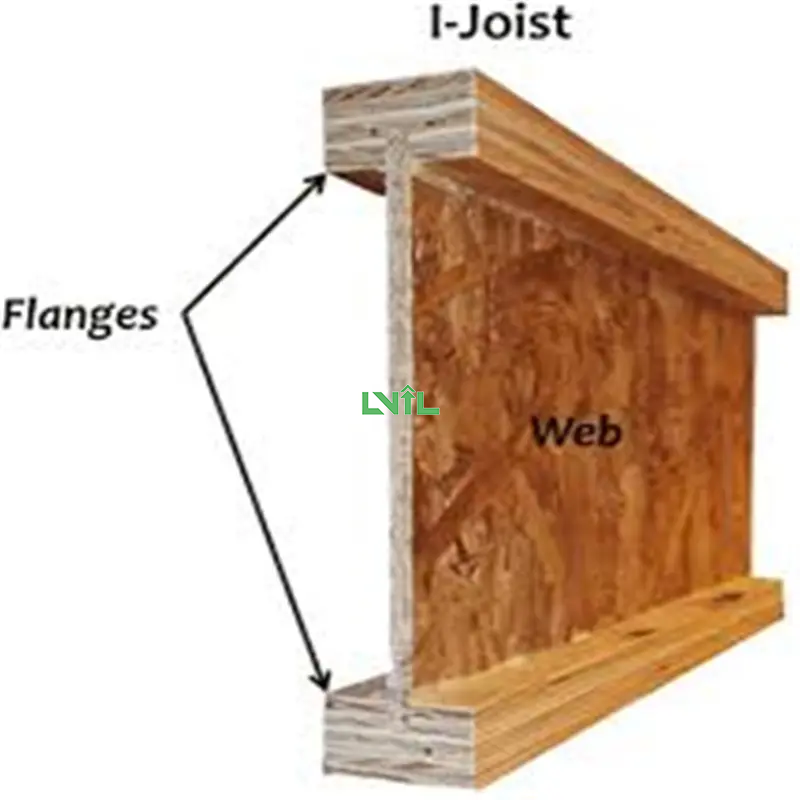

I Joist is a New Wooden Engineering Structural Component . have I 230 I 360 I 560 joists It refers to the solid wood or LVL used as the upper and lower flange, and the plywood structural plate bonding, specifications and performance of stable bearing structural members.The I joist is made up of two main parts: Flange and web these two parts: the first part is the flange flange of the upper and lower Flange, which is made up of solid wood or LVL.The second part is the intermediate Web called the Web(net), the usual material is OSB board.The Flange gets its name from web and flange, which are connected together with high-quality adhesives to form an ‘I’ shape.The web of I joist can be cut open to accommodate wires and pipes. A common I-beam web will have 40mm pre-punched holes. The specific position and maximum size of the holes can be calculated according to the drawings and corresponding tables, as shown in Figure 2, and the strength of the I-beam will not be affected by the pipe cutting holes. https://www.lvijoist.com/

Low cost, high stiffness, light weight; Powered by Shandong Unique International Trade Co.,Ltd

Exchangeable, achieve E0 environmental protection standard;

www.lvijoist.com

High degree of standardization system production components, reusable good.

Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

Unique

Specifications


https://www.lvijoist.com/

ItemLVL flange I JOIST Beam
Flange MaterialLaminated veneer lumber, spruce solid
Web Material11mm/12mm OSB
Head ProtectionWithout head protection
Height 240mm 300mm,350mm 390mm +/-0.5mm, as request.
Moisture Contentless than 14% at the time of delivery

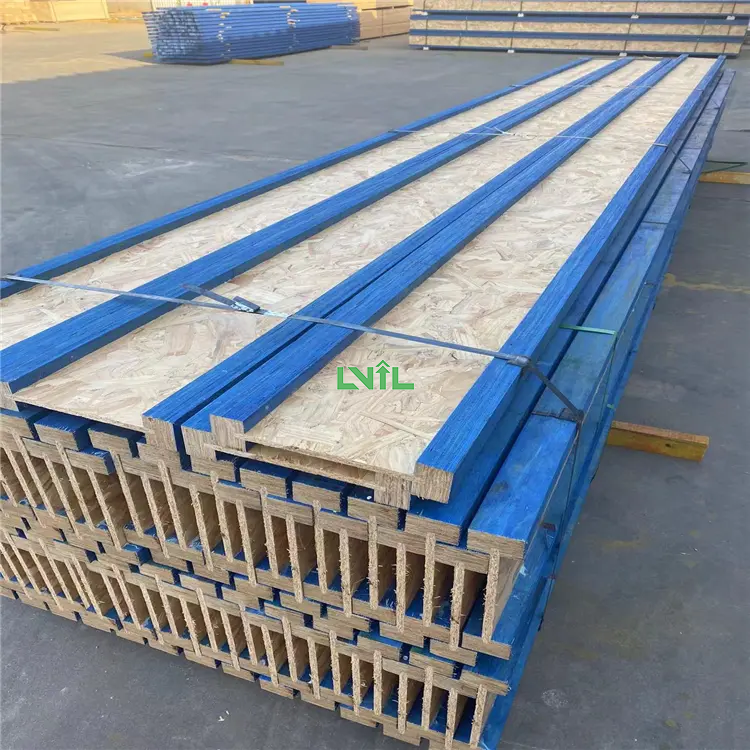

Surface ProtectionThe finished beam is waterproofed using a water-based color

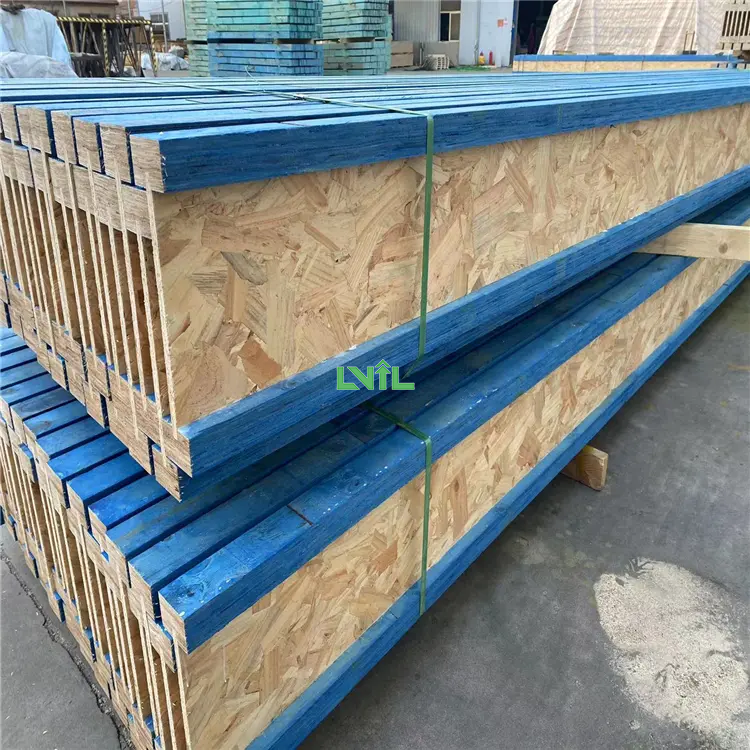

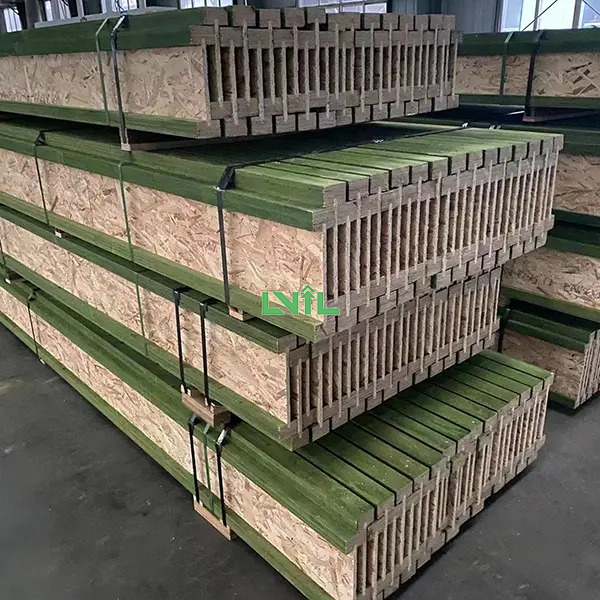

ColorYellow, blue, red or as customer's request

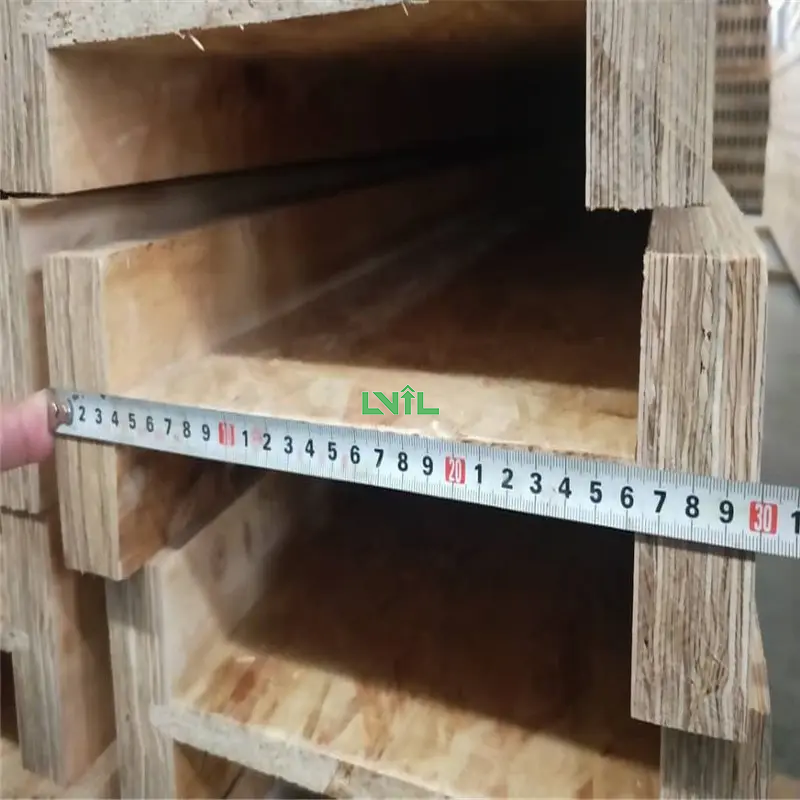

Flange Size63X40/45mm
Web Size11mm/12mm thickness
WeightApprox 5kg/Meter
Standard lengths300-360-420-450-460-480-540-600-660-720-840-900-1000-1200(CM)
Mechanical SpecificationModulus of elasticity : E 10,800 N/mm2
Shear modulus : G 630 N/mm2
Packing3800-4200m per 40ft container.
Loading 2000M per 20GP     4300M per 40HQ
CapacityITEMWorking capacityEN requestSGS test
maximum bending resistance6KN. M10.9KN. M16.2KN. M
maximum shearing resistance12KN23.9KN30.8KN
maximum bearing resistance23KN47.8KN53.2KN
ApplicationLevel formwork system, Vertical formwork system, Adjustable formwork system, Curve formwork system, Irregular formwork, etc.

Unique

Copyright © Shandong Unique International Trade Co.,Ltd All Rights Reserved.

Unique

Advantages

I-Joist is an important part of the international common building formwork system. It has the characteristics of light weight, high strength, good straightness, not easy to deformation, water and acid and alkali resistance on the surface. It can be used year-round and has low cost amortization costs. Can be used with domestic and foreign professional template system products.

Powered by Shandong Unique International Trade Co.,Ltd

Can be widely used in horizontal formwork system, vertical formwork system (wall mold, column mold, hydraulic climbing mold, etc.), variable arc formwork system and heterosexual formwork and other formwork system. Powered by Shandong Unique International Trade Co.,Ltd

Woodworking beam straight wall template for loading and unloading template, convenient assembly, in a certain range and degree can be assembled into a variety of sizes of templates, flexible application. Mold plate stiffness, length and height are very convenient, the maximum of a template can be poured more than 10 meters. Because of the light quality of the template material, the whole template is much lighter than the steel template when assembled. Powered by Shandong Unique International Trade Co.,Ltd

The system product parts high degree of standardization, good reuse, meet the requirements of environmental protection.
