Waterproof doka h20 wooden beam for concrete formwork can be used in any kind of formwork where you would use 4x6 lumber. They have a high load capacity throughout their length and are easy to handle. Suitable for all formwork systems, inc...
Overview
H20 Wooden Beam For Concrete Formwork
H20 wooden beam is a concrete formwork timber beam, double T-section timber beam used in a variety of forming and bracing applications. Lightweight, durable, and comes with a plastic cover to protect them from shock and moisture. Suitable for all formwork systems, including wall formwork, table formwork, slab formwork, column formwork, etc.
The H20 wooden beam is a type of timber beam commonly used in concrete formwork. It is made from high-quality spruce wood that is reinforced with a water-repellent coat. The H20 beam is lightweight, durable, and easy to handle, making it ideal for construction projects.
The H20 wooden beam is designed to provide strong support for concrete structures during the pouring and setting process. It can withstand heavy loads and maintain its shape and strength even under pressure. The water-repellent coating on the beam helps to protect it from moisture, reducing the risk of warping or damage.
One of the key features of the H20 beam is its versatility. It can be easily cut to size and customized to fit specific project requirements. It also has multiple holes along its length, which allow for quick and secure attachment of accessories such as formwork clamps or props.
The H20 wooden beam is widely used in various types of concrete formwork applications, including slab formwork, beam formwork, wall formwork, and column formwork. It provides a stable and reliable support system for the concrete while also allowing for easy installation and removal.
Overall, the H20 wooden beam is a popular choice for concrete formwork due to its strength, durability, and versatility. It offers contractors and builders a cost-effective and efficient solution for creating strong and stable concrete structures.
H20 formwork beams features
• Available in a variety of sizes, the outer parts are made of selected high-quality solid fir wood, comb-coupled with finger-joint technology, and have a triple-layer core.
• On request, plastic protection is available to reduce the risk of scratching the outside of the beam
• H20 formwork beams are lightweight and heavy-duty, easy to handle and safe for construction.
• Sturdy and stable. The surface of the formwork wooden beams is treated with water-repellent stains. H20 beam spray paint is also protected against UV radiation and fire.
• Dimensions standards: 80 x 200 x 2450/2900/3300/3600/3900/4200/4900/5900 mm
H20 formwork beams applications
H timber beam is mainly used in the erection of horizontal formword system, vertical formwork system, column formwork system and other ferroconcrete panel system.

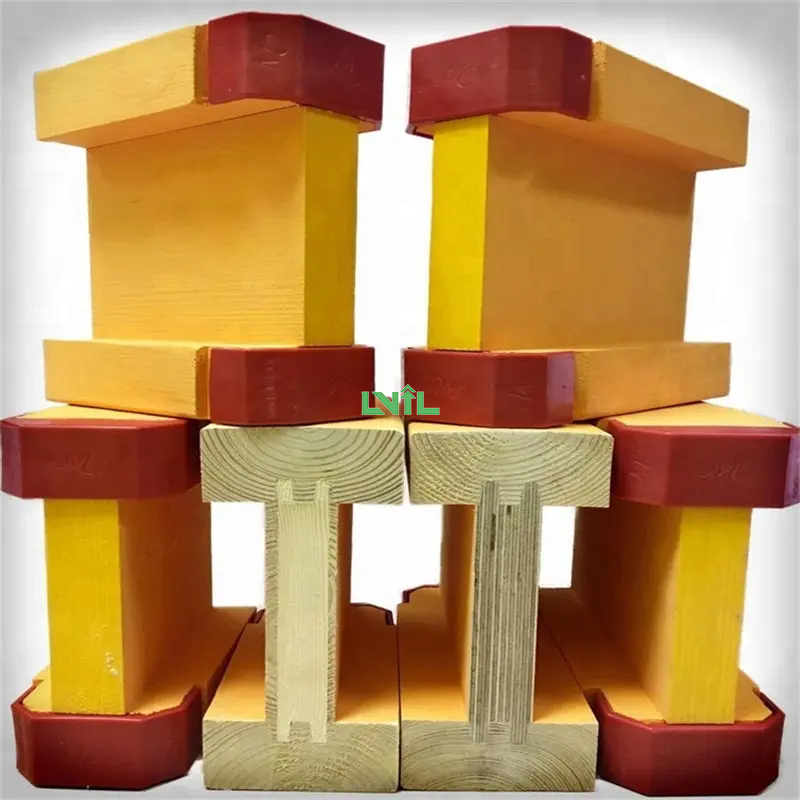

Plastic capped ends: with the protection of plastic caps, H beams can bear commonly direct clash and frication, while their prefect and conspicuous appearances are really popular.
As a leading OEM H20 beam manufacturer in China. The standard size of H20 formwork beams are 200x80mm. It is compatible with all types of building props and scaffolding systems. Please contact us for the best H20 beam price immediately.
