Doka H20 beam for formwork construction

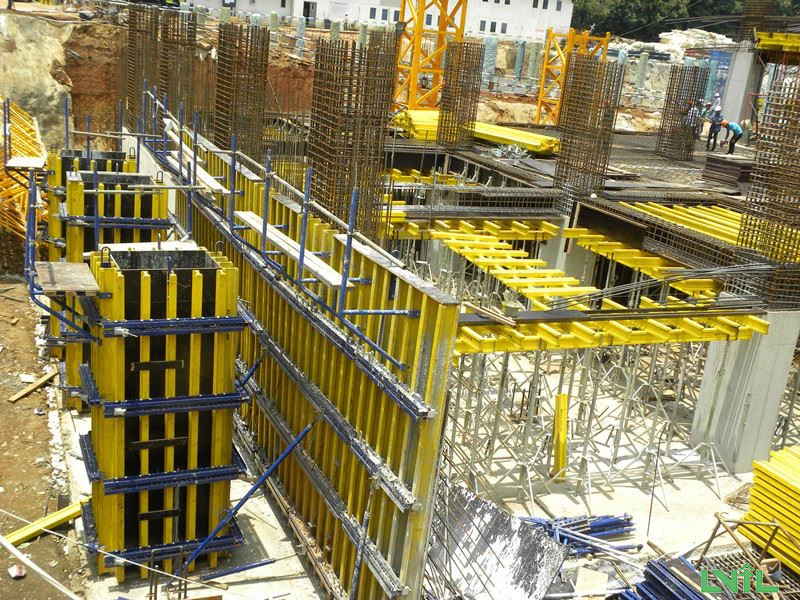

H20 timber beam is one of the basic components of formwork system, maintains the property to be lighter, stronger, safer and more durable in order to achieve for better performance for site jobs. The application could cover all kinds of slab formwork, wall formwork, column formwork etc.
1. Introduction
Flange: AAA level spruce
Core: high quality plywood
Glue: customized WBP glue
Weight: 4.8kg per meter
Color: yellow
Available Length: 1.5, 1.9, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 etc. or customized
2. Technical Specification
| Application | For construction use ,carry film faced plywood. |
| Standard | H-20 model |
| Weight | 4.8kg per running meter. |
| Bending moment | Max.5KN/M |
| Shear force | Min 11.0KN |
| Bending | Max 1/500 |
| Live load (Bending stiffness) | 1.5KN/M2 |
| Length | 0.9m-6.0m |
| Standard Size | 20cm(height)×8cm(width)×4cm(flange thickness)×27mm(web thickness) |
| Flange | AAA level spruce wood |
| Treated by WBP glue exterior used weather & water-proof | |
| Coated by antiseptic & water-proof yellow painting. | |
